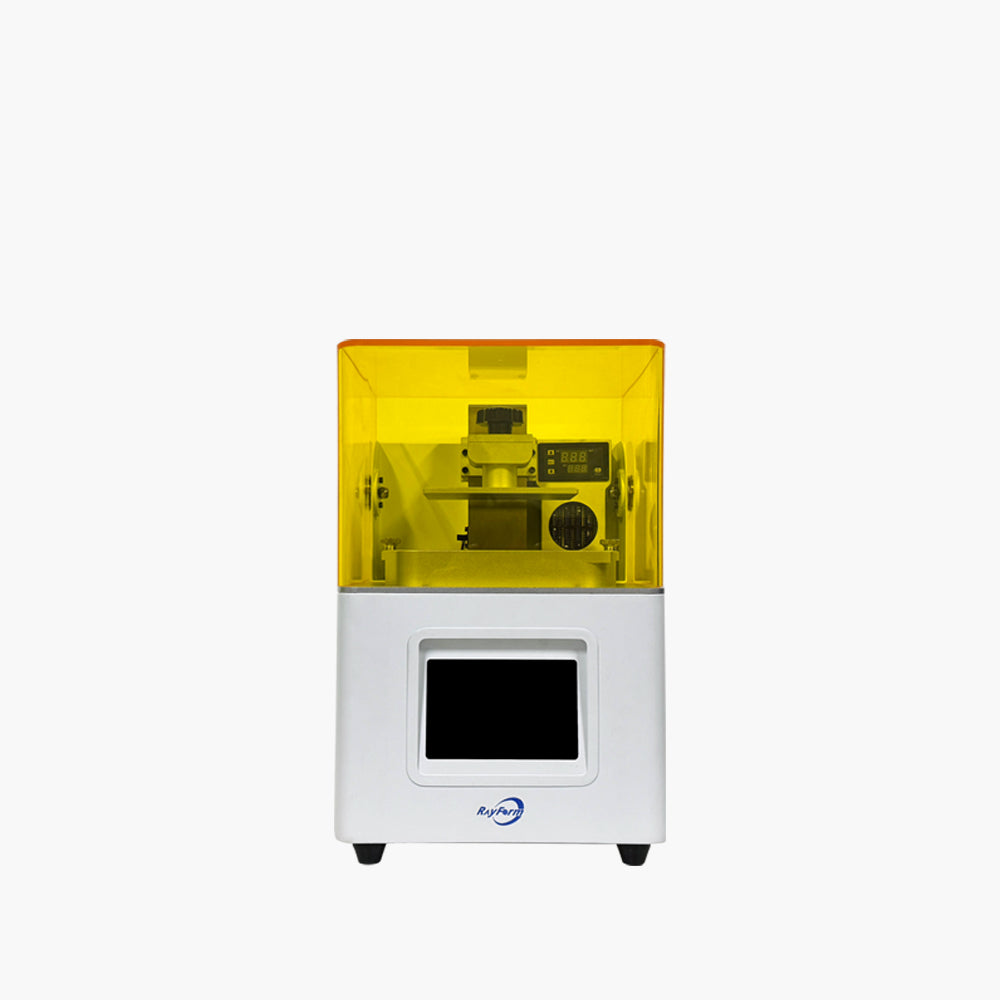

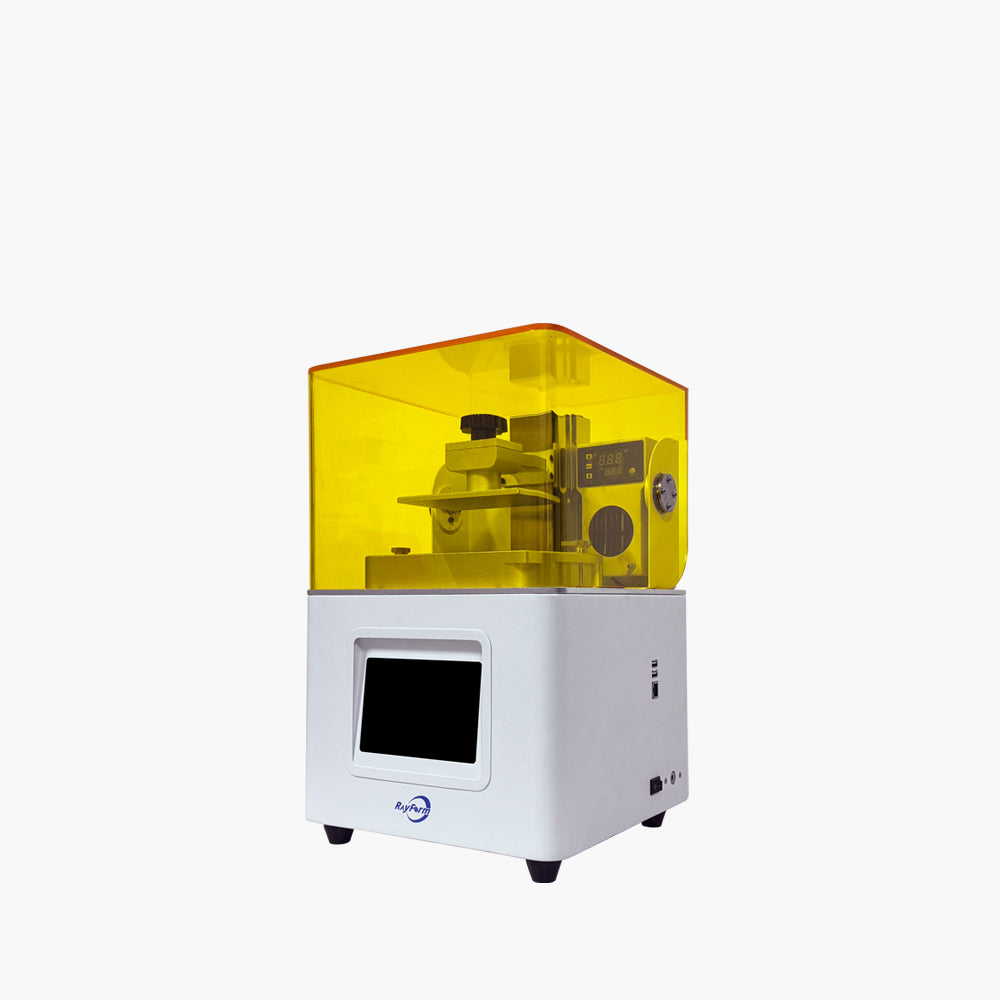

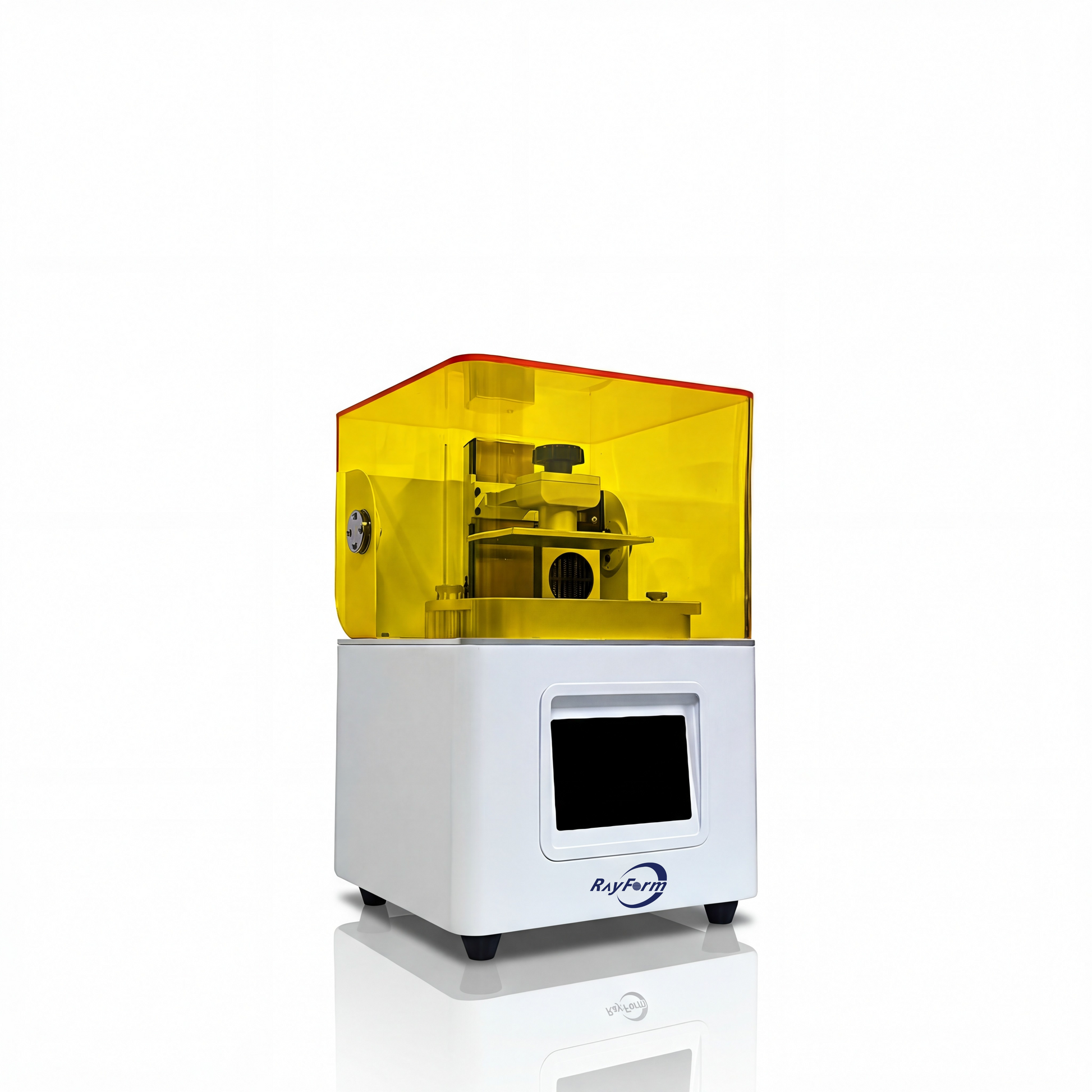

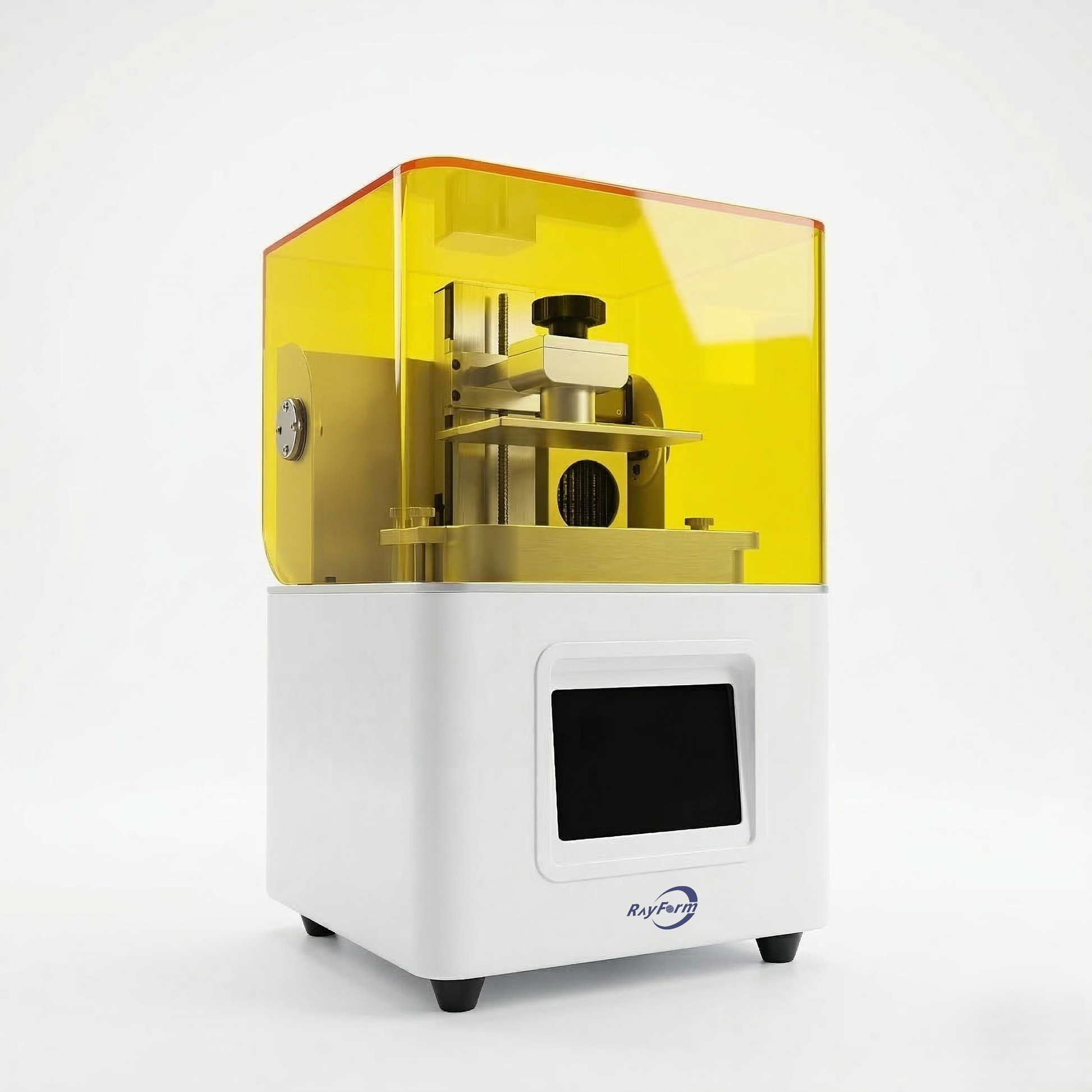

The RayForm RF-3024D is a compact dental-grade 4K LCD resin printer engineered for
high-accuracy, high-stability output in dental labs of any size. Powered by a 6.6"
4K LCD screen (4098×2560) and COB light source, it delivers 35μm XY resolution across
three interchangeable printing platforms — giving you the flexibility to handle dental
models, flexible denture bases, and temporary crowns from a single machine.

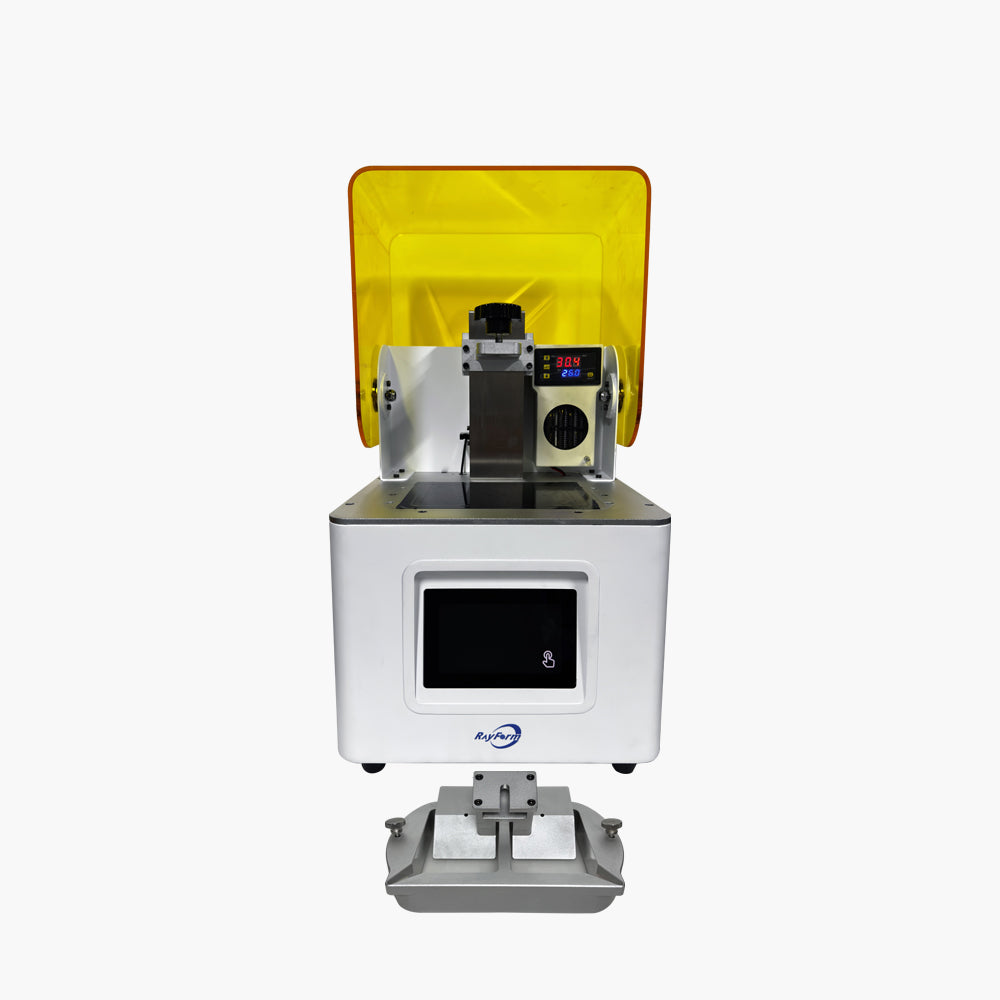

What sets the RF-3024D apart is its three-platform architecture:

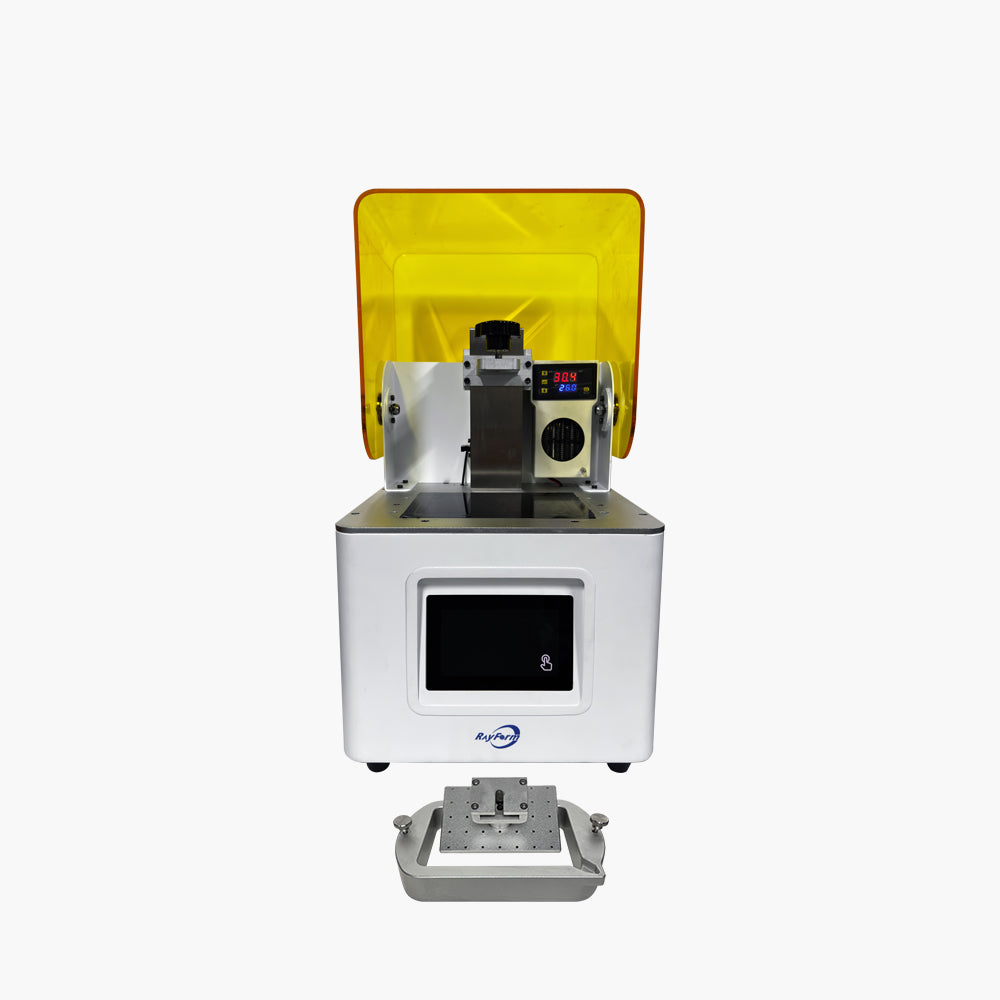

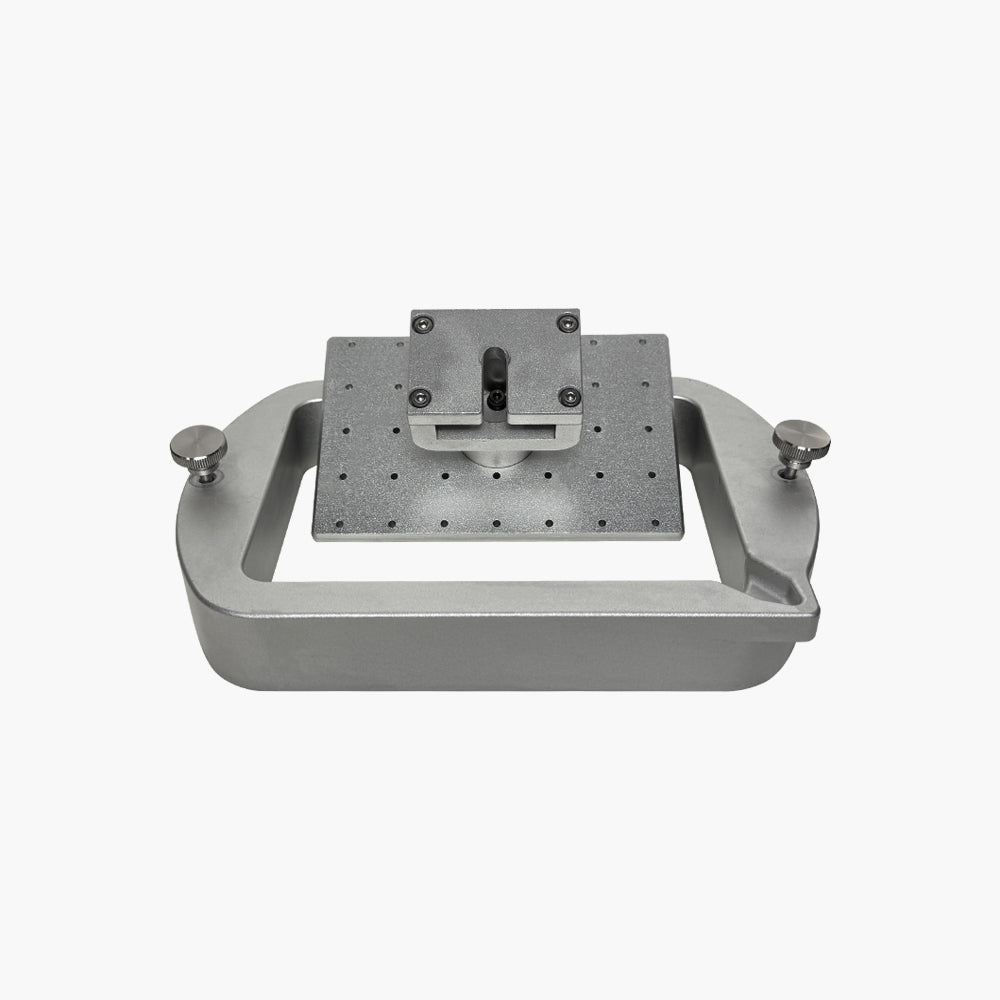

- Platform A (143×90×80mm) — Full-size platform for standard dental model runs

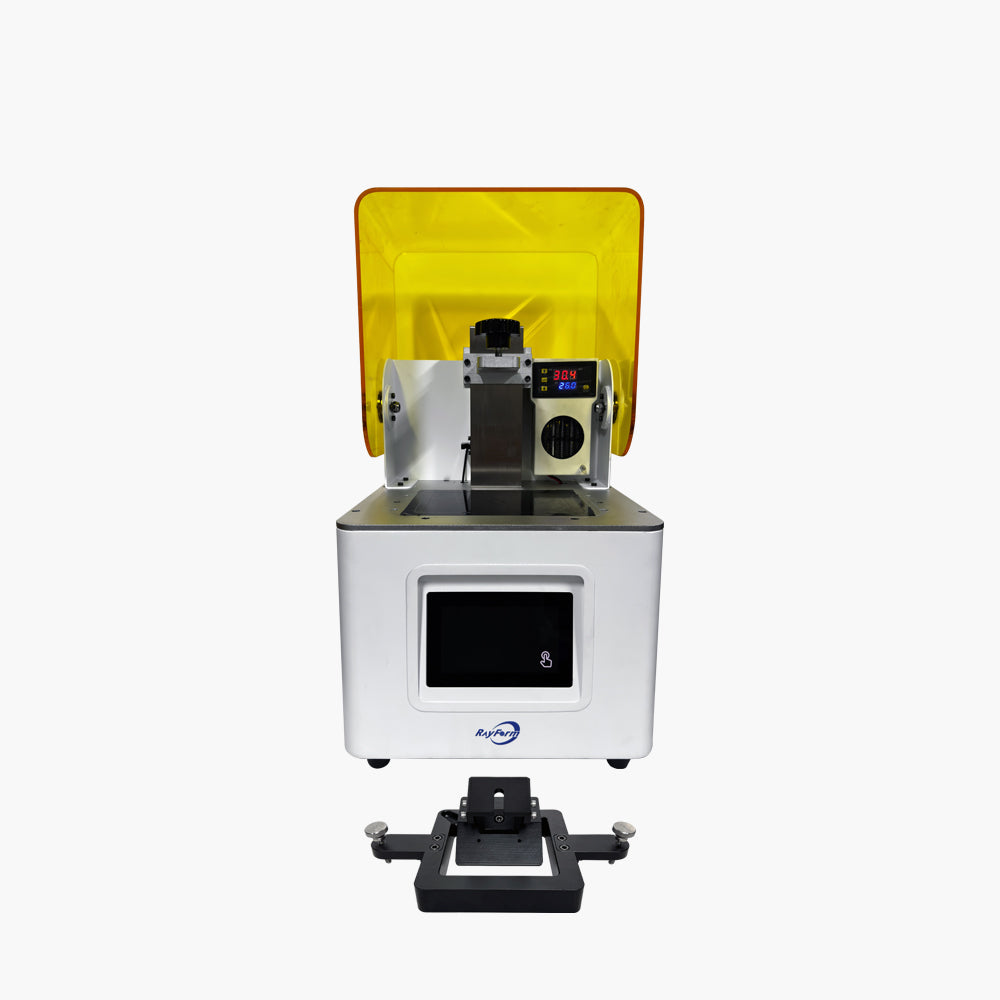

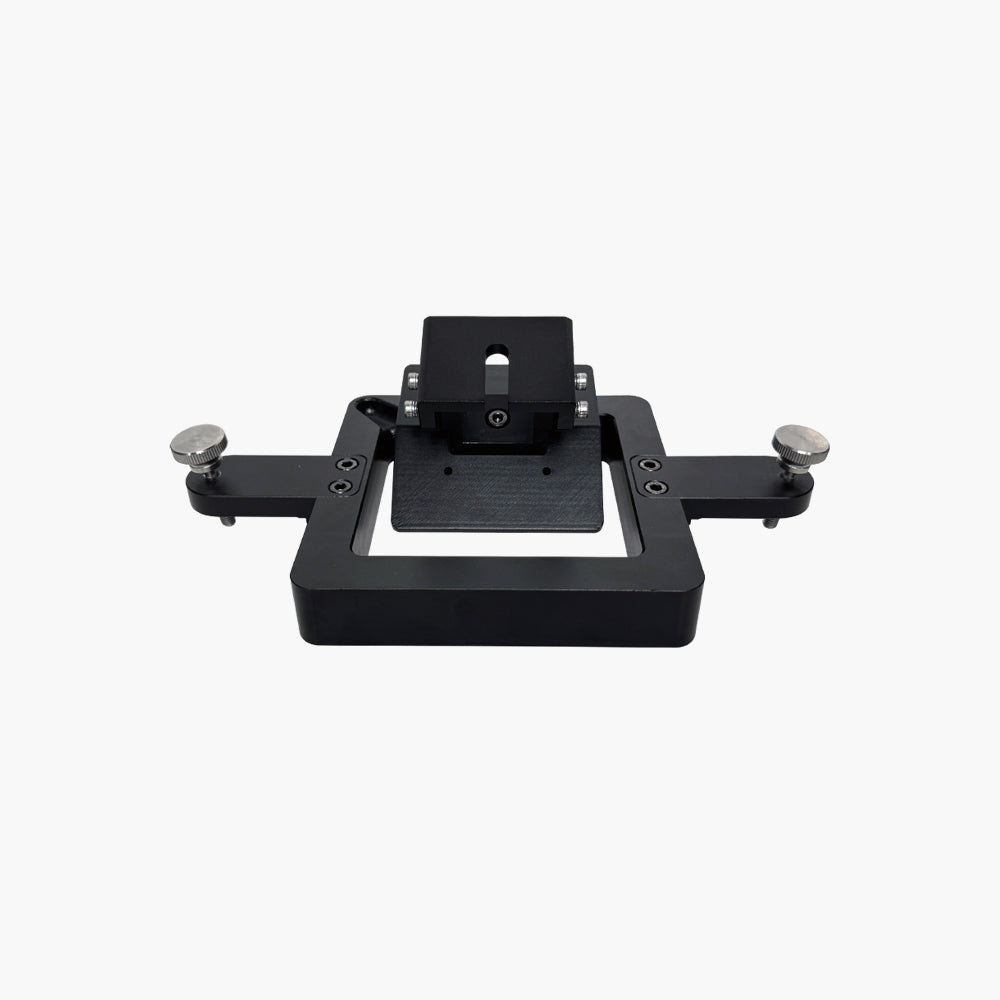

- Platform B (85×85×80mm) — Small platform for compact or single-arch cases

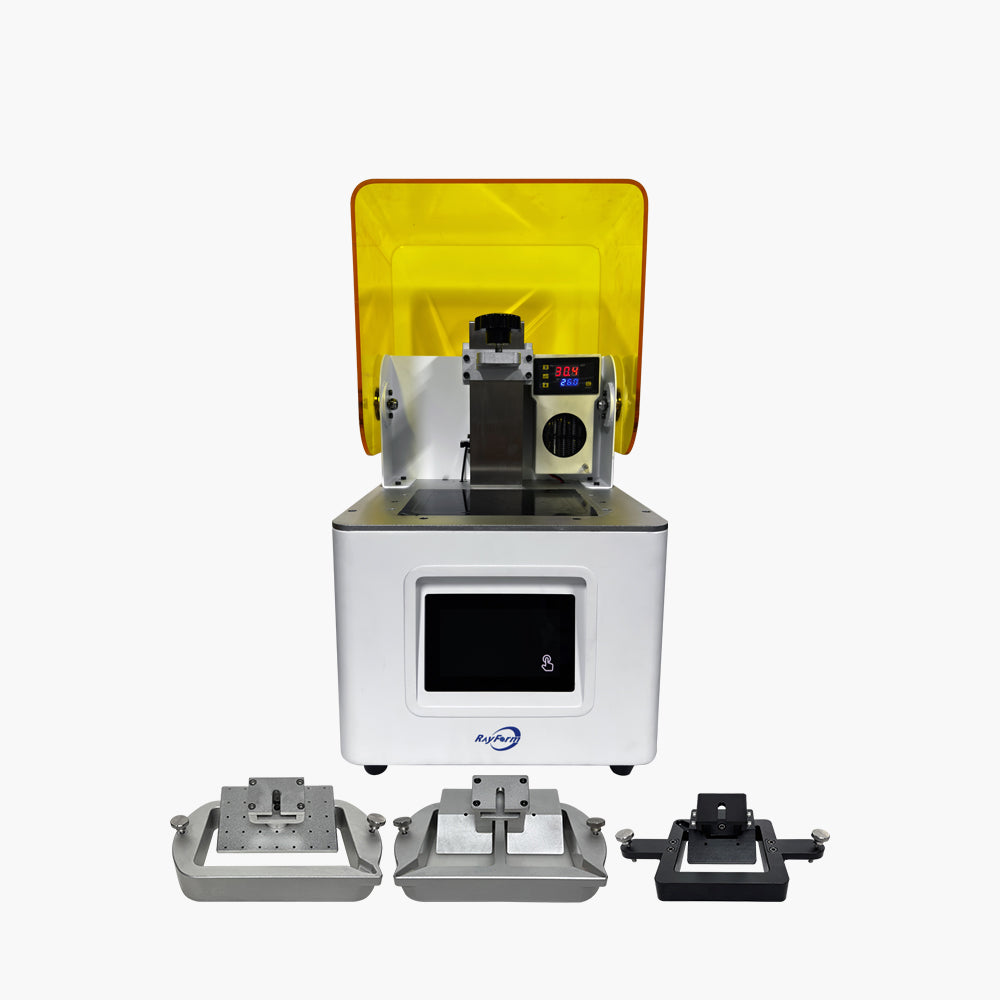

- All Platform — Full dual-platform configuration for maximum batch output at $1,799
Technical Specifications:
- LCD Screen: 6.6" 4K (4098×2560)
- XY Resolution: 35μm | Layer Thickness: 0.01–0.15mm
- Light Source: COB (92% uniformity)
- Printing Speed: Up to 60mm/h
- Build Volume: 143×90×80mm (Platform A) / 85×85×80mm (Platform B)
- Machine Size: 300×280×430mm | Weight: 13kg
- Slicer: CHITUBOX (supports .ctb)
- Connectivity: WiFi 2.4GHz + RJ45 | 5-inch touchscreen
- Certifications: ISO 9001 · CE · FDA
Compatible with all RayForm dental resins including Dental Model Resin,
Flexible Denture Base Resin, and TEMP C&B Resin.
