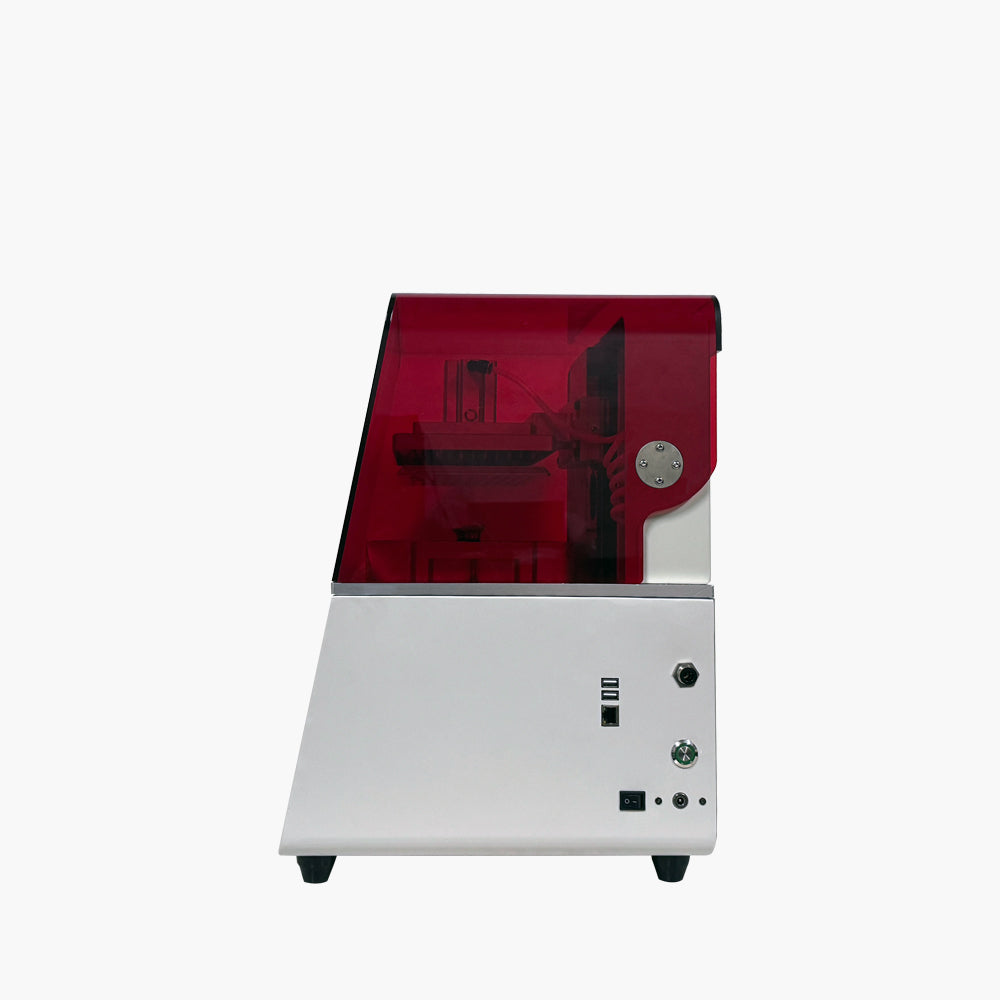

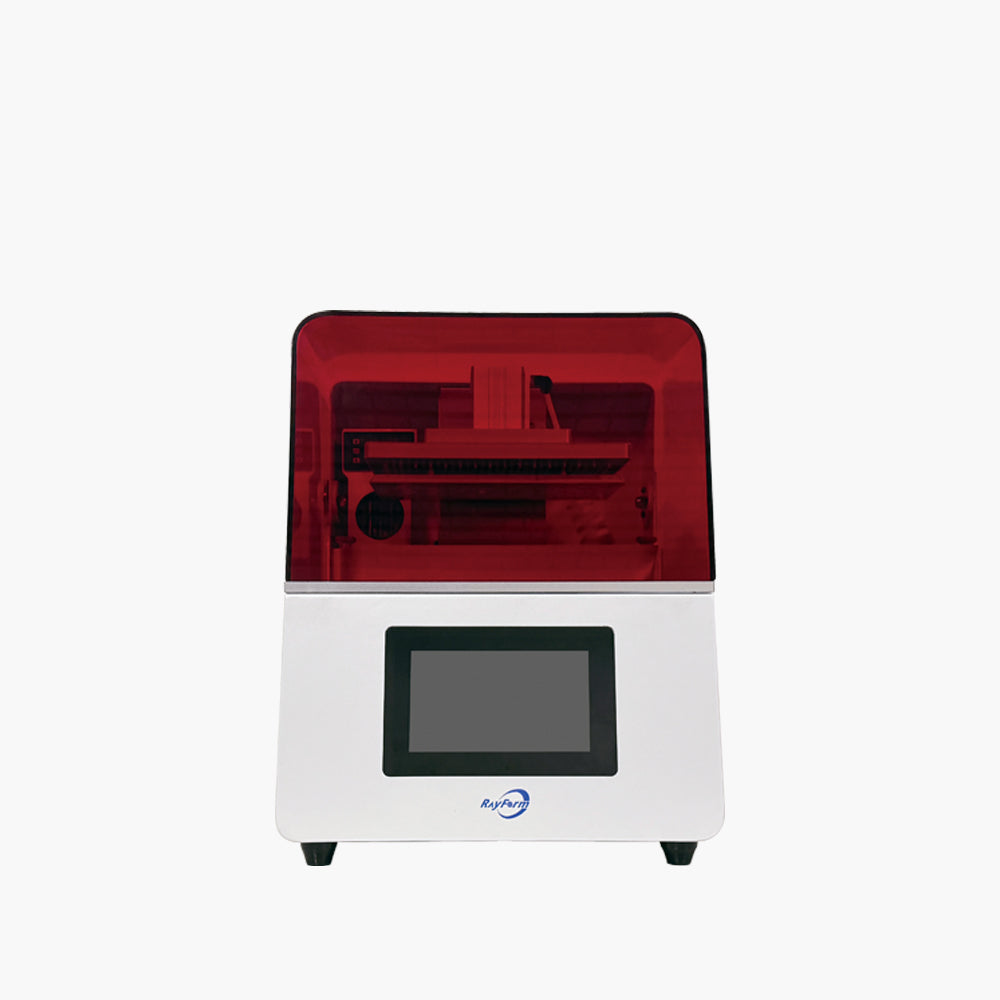

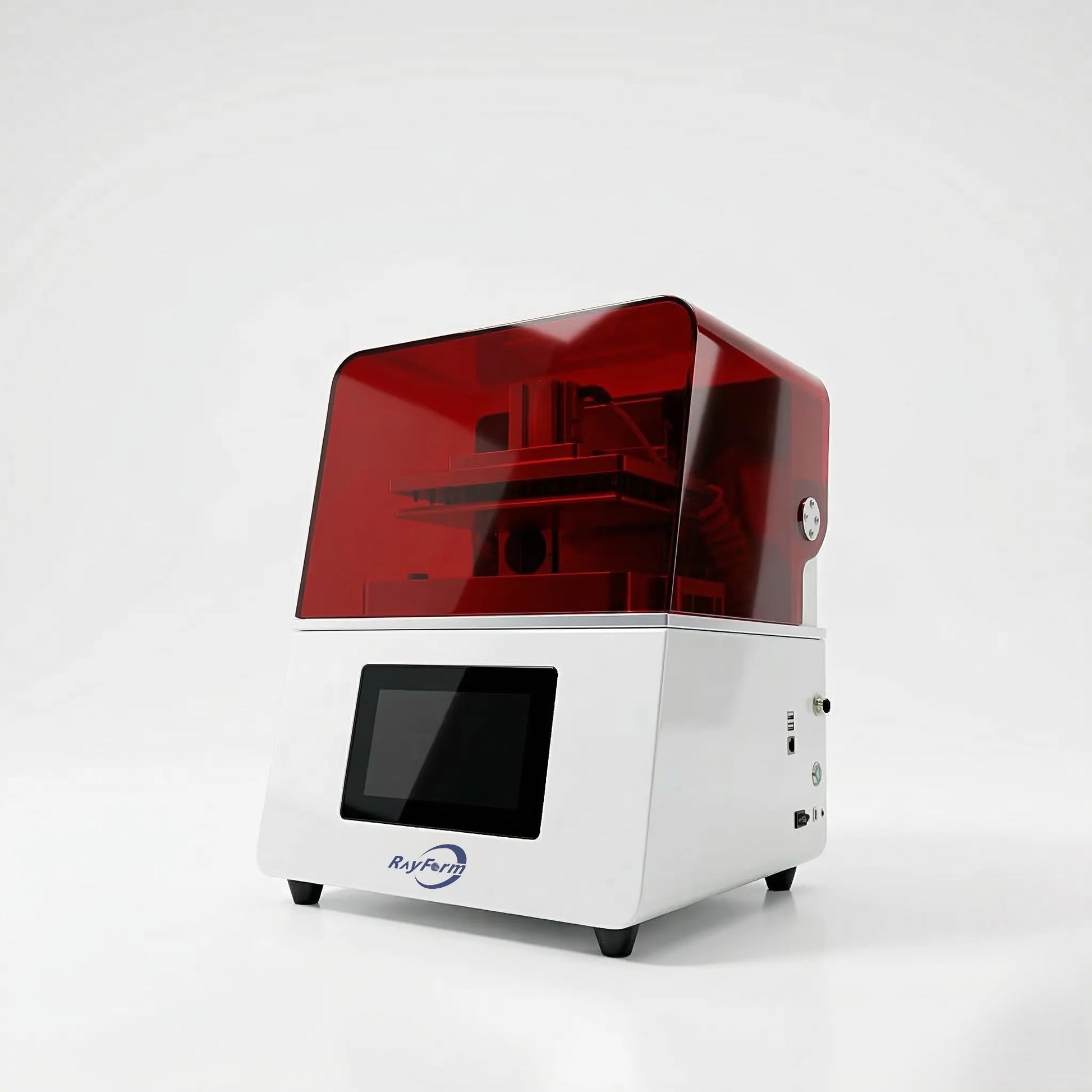

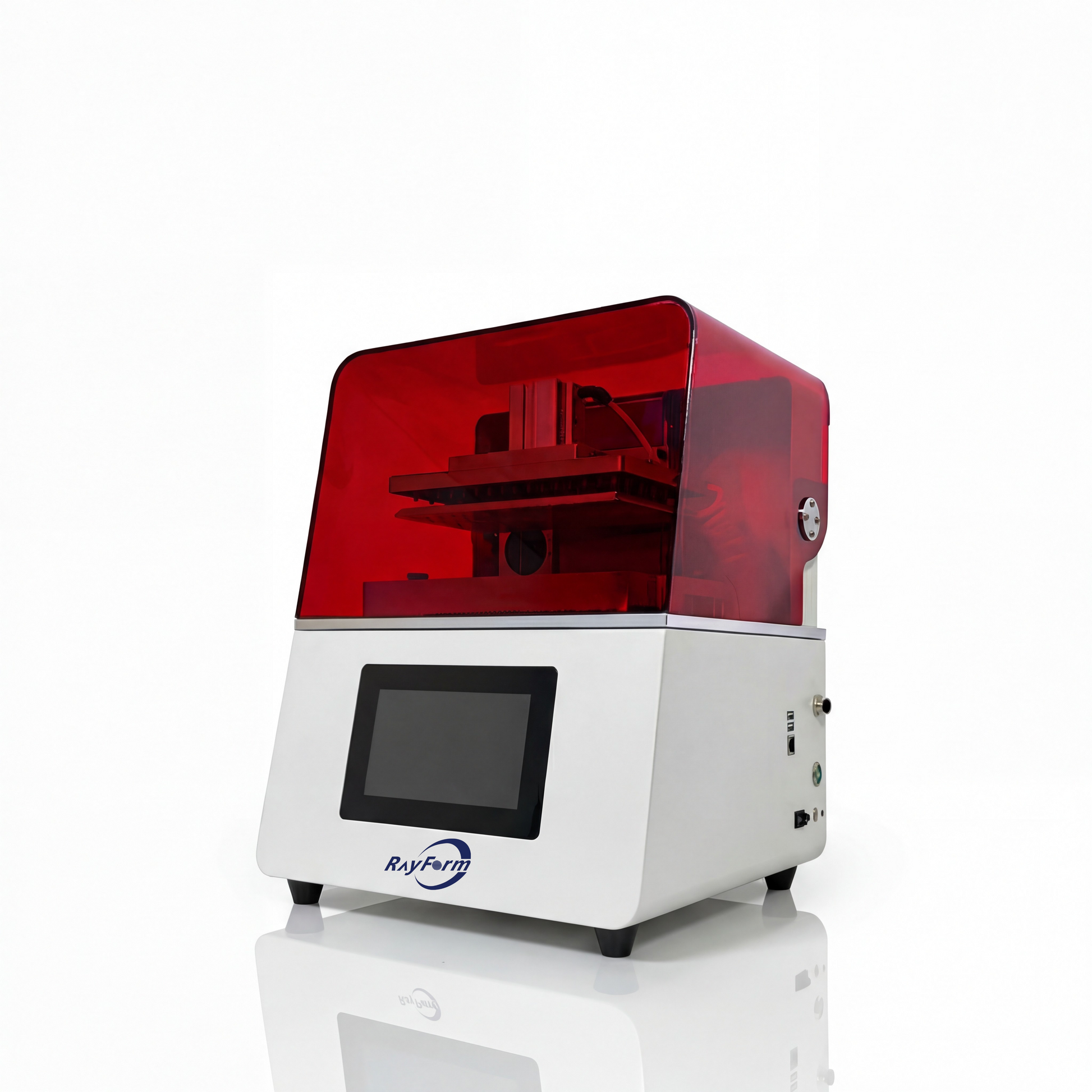

The RayForm RF-3028D is an 8K LCD resin 3D printer for professional dental model production. Use the build volume, pixel size and intended material workflow to assess how it fits your laboratory.
Technical specifications
-
Technology: MSLA / UV LCD, 405 nm
-
Pixel size: 29.7 µm
-
Catalog build volume: 228 × 128 × 235 mm
-
Layer thickness: 0.025–0.10 mm
-
Machine dimensions: 350 × 330 × 600 mm
-
Machine weight: 22 kg
-
Light source: COB; catalog uniformity up to 92%
-
Catalog printing speed: Up to 60 mm/h
Specifications are from the RayForm LCD 3D Printer Series Brochure. Confirm the selected platform and machine configuration before ordering. Actual printing speed depends on the resin, layer settings and build geometry.
Choosing a dental printer
Check the usable build area against your model layout and intended batch size. Validate the resin-specific exposure and post-processing workflow before comparing production output between machines.
Common question
Does pixel size guarantee the accuracy of every printed part?
No. Pixel size is one machine specification. Printed results also depend on calibration, the material, orientation, exposure and post-processing.
Compare the 4K LCD printer and browse dental 3D printing materials.

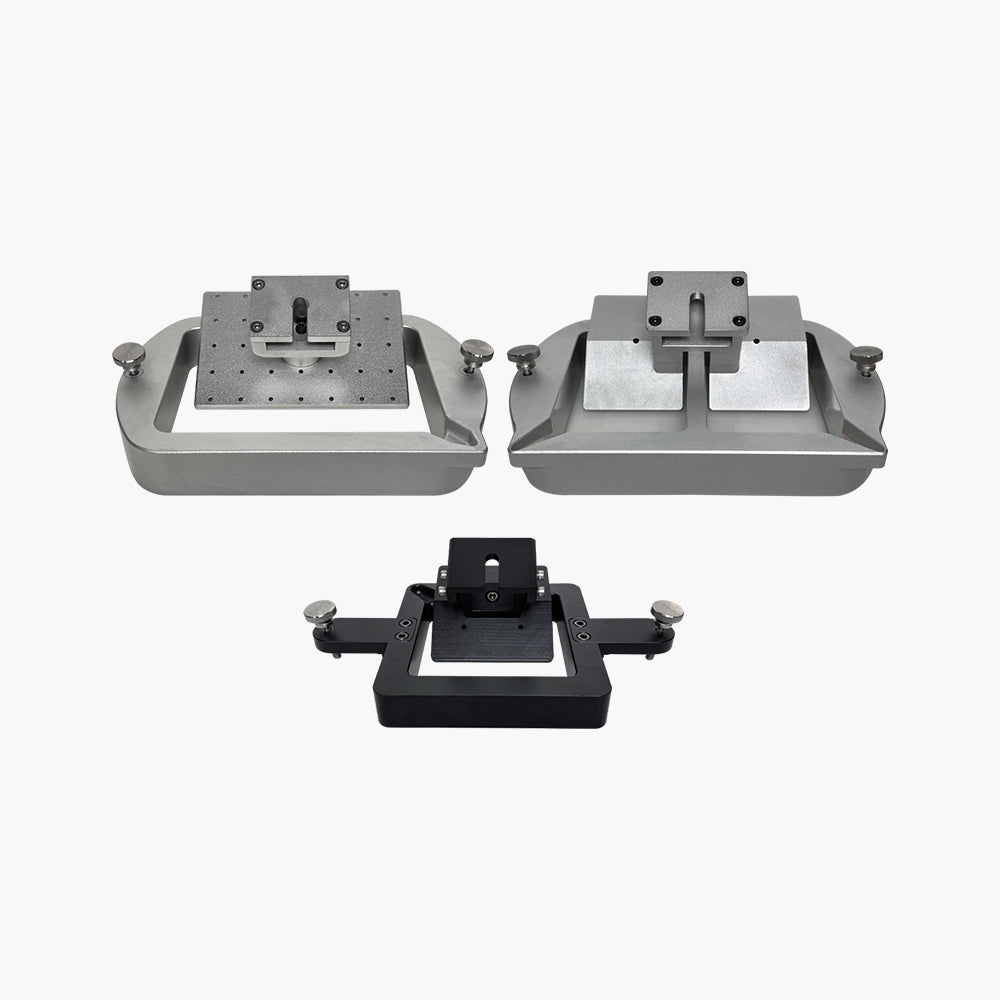

Configuration and material support
Contact RayForm technical support with your intended application, material and production volume to confirm the RF-3028D configuration and request the relevant printer and resin documentation.
